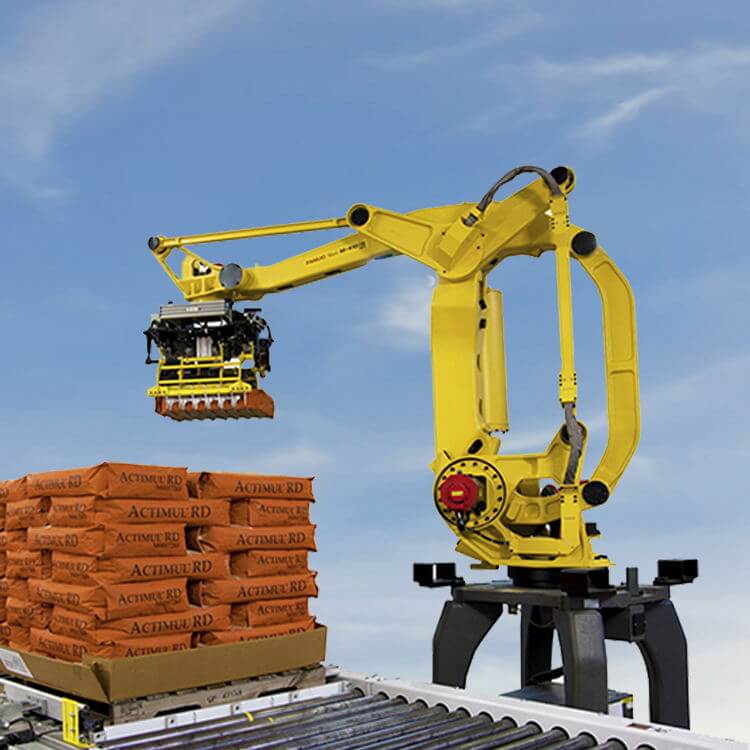

Stacker is a machine, electrical integration of high-tech products, can be arranged in accordance with the requirements of the way and number of layers, complete the material bags, plastic blocks,box and other products of palletizing. Automatic palletizing system can greatly reduce labor personnel and reduce labor intensity, is a high-tech product of the development of modern industrial society, to improve productivity, reduce costs has important significance.



Pallet Stacker is a complete function of equipment, can completely replace manual to complete high-precision work, widely used in feed, fertilizer, cement and other industries. NAR Automation engineering can provide customers with customized product solutions,Including equipment installation, debugging, training, etc. If you need equipment maintenance, we will provide you with quality after-sales service.

Stacker Detail

Stacker Standard configuration

  • Flattening conveyor
  • slow stop conveyor
  • transposition conveyor
  • pallet bin, pallet conveyor
  • marshalling machine
  • bag pushing device
  • stacking device
  • pallet conveyor

Stacker Characteristics

The stacking is suitable for powders: flour, cement, putty powder, refractory materials, water purification materials, coatings, dry mortar and other powders, powder particles; particles: rice, wheat, corn, slagging agent, briquette, Stacking of pellets and block materials such as balls and stones.

  • The pallet  stacker is generally operated in an open environment. It has an independent linkage mechanism, and it uses a linear conveying track, so it is very stable and the transmission efficiency is also very high.
  • It presents a straight line and only uses one motor, so the stacking effect is very good. Moreover, the operating range is very large and the safety performance is good.
  • The stacker has many products of different specifications, from low to high speed varieties, so the selection range is also very wide.
  • Most parts of the palletizing robot are on the bottom, the arm is quite flexible, and the power consumption is slow, which is energy-saving and environmentally friendly. And even in a high-speed operating environment, the reliability is very high.
  • The operation of the palletizer is very easy. You only need to set the position of the pick-up and the position of the pallet, then design the running track and place the operating robot. The position adjustment of the palletizing is also very simple, which can be operated directly on the touch screen. If you want to change to another product, you only need to enter the specifications of the new product in the system to perform the operation, which is very convenient.
  • Because the pallet stacker uses linear guide rails, and the conveyor is also a standard part of the belt type, if it is damaged, it is very convenient to purchase and replace. The emergence of palletizers not only greatly improves the efficiency of packaging and packing, but also the operation is quite simple, the fault is also easy to find, and it is convenient for inspection and maintenance. Because of its advantages, it can be widely used.

Advantages of Automation  stacking machine

  • Safer
  • More effective in location with conveyors and other  automated systems
  • More costly to implement
  • Great cost savings in the long run

Optional configuration

  • Marshalling mode
  • Number of layers

Gripper classification of palletizing machine

  • Gripper mechanical gripper
  • Splint type mechanical gripper
  • Vacuum suction mechanical gripper

Stacker Application

Widely used in grain and oil, feed, fertilizer, mining, ports, power plants and many other industries.

Robot Palletising Q&A

  • Air leakage at piston rod
    • Cause: the bottom ring of the main body is damaged
    • Measures: replace the ring
  • Air leakage at exhaust port
    • Cause: the on-off valve ring or switch seat ring is damaged or the piston ring is damaged
    • Measures: replace
  • Air leakage at trigger
    • Cause: the on-off valve ring or switch seat ring is damaged
    • Measures: the machine needs to be maintained after being used for a period of time. After being used, the palletizing robot should be cleaned. When necessary, check the lubrication degree of the machine and add lubrication in time to prolong the service life of the palletizing robot.
  • The nail clamping action of palletizing robot is too slow or the nail clamping stroke is insufficient
    • Cause: the bolt is loose and the front buckle or the inner plate of the board machine is worn. Tighten the bolts and pay attention to the correct position of the front buckle shaft.
    • Measures: the front buckle or the inner plate of the board machine can be replaced. After completing the above actions, test its function. If the stroke is too short, fine tune the front buckle shaft upward. If the action is slow, fine tune the front buckle shaft downward.

Advantages of our machining service

  • Competitive price and quality from our own factory
  • Approved by ISO9001, CE, SGS every year
  • Best service with 24 hour`s reply
  • Flexible payment with T/T,L/C , paypal, kunlun bank, etc
  • Smooth production ability
  • Quick delivery and standard exporting package
