Curved belt conveyor


The curved conveyor can transport a wide variety of materials, not only various bulk materials, but also various cartons, bags and other pieces of goods with small single weight. The curved belt conveyor can meet the process requirements of various turning conveying .The curved belt conveyor is equipped with PVC, PU and other materials. In addition to the conveying of ordinary materials, it can also meet the conveying of materials with special requirements such as oil resistance, corrosion resistance and anti-static.


Curved belt conveyor is widely used in food, beverage, electronics, tobacco and other industries. NAR Automation engineering can provide customers with customized product solutions,Including equipment installation, debugging, training, etc. If you need equipmentmaintenance, we will provide you with quality after-sales service.


Standard configuration

  • Head frame
  • driving device
  • transmission drum
  • tail frame
  • idler
  • intermediate frame
  • tail redirection device
  • unloading device
  • cleaning device
  • safety protection device


  • Curved Belt Conveyor function will not be affected by changes in load and environment
  • The normal operation of the belt does not require precise belt tension adjustment and precise taper reel position
  • The curved conveyor  will not be misaligned by the accumulation of contaminants on the belt
  • A variety of incline belt conveyor surface widths are available to choose from, and can meet customer requirements and special specifications
  • Low tension operation makes the machine more durable
  • All-steel body, easy maintenance, practical design, low maintenance cost
  • The curved conveyor can run normally without precision adjustment

Optional configuration

  • Material
    • PVC
    • PU
  • Structure

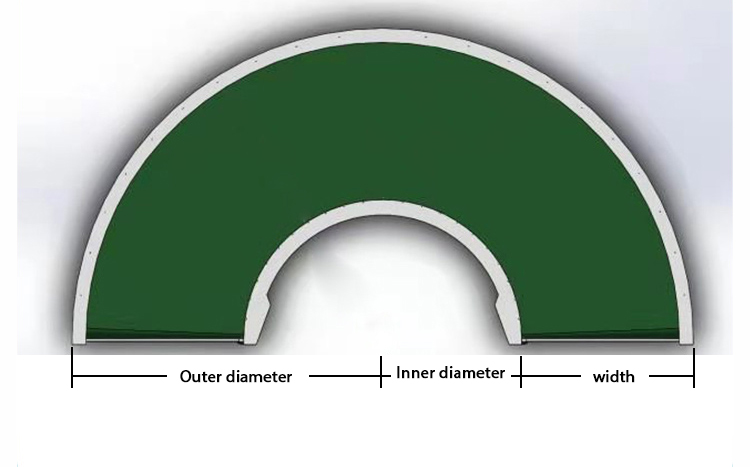

    • 30 degree turning belt conveyor
    • 45 degree turning belt conveyor
    • 90 degree turning belt conveyor
    • 180 degree turning belt conveyor


Widely used in grain and oil, feed, fertilizer, mining, ports, power plants and many other industries.


  • Conveyor belt slipping
    • Cause: insufficient friction between drum and conveyor belt; The belt is too wet; Materials are adhered to the surface of the belt body; Overload operation of conveying equipment
    • Measures: adjust the tensioning device, replace or clean the foreign matters between the drum and the belt, and check whether the transported goods are overloaded
  • Conveyor belt deviation
    • Cause: the position of tensioning device and roller deviates
    • Measures: adjust the position of tensioning device and roller
  • Abnormal noise during conveyor operation
    • Cause: the reducer lacks lubricating oil, the drive shaft is not aligned or the bearing is damaged
    • Measures: adjust the chain tension and reposition the bearing seat

Advantages of our machining service

  • Competitive price and quality from our own factory
  • Approved by ISO9001, CE, SGS every year
  • Best service with 24 hour`s reply
  • Flexible payment with T/T,L/C , paypal, kunlun bank, etc
  • Smooth production ability
  • Quick delivery and standard exporting package
