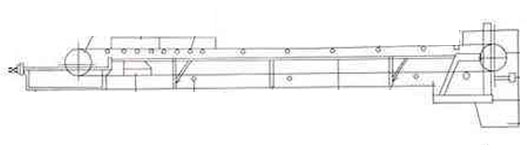

Flat belt conveyor


Flat belt conveyor is a kind of continuous transportation machinery, which is widely used in ports, power plants, grain and other fields. Low noise and simple structure in the working process.The flat belt conveyor systems can be combined with ship loader and ship unloader.


Flat belt conveyor has large transportation capacity, low resistance and low power consumption. It is widely used in ports, power plants, grain and other fields.

NAR Automation engineering can provide customers with customized product solutions,Including equipment installation, debugging, training, etc. If you need equipmentmaintenance, we will provide you with quality after-sales service.


Optional configurarion

  • Conveyor belt
  • idler
  • frame
  • driving device
  • tensioning device
  • belt storage device
  • braking device


  • The flat belt conveyor system has a simple structure and is easy to maintain; it consumes less energy and has a low use cost.
  • The length, width, and height range of the flat belt conveyor design can be selected according to customer needs.
  • The flat belt conveyor equipment speed of the belt conveyor can be fixed speed or variable speed.
  • The flat belt conveyor technology specification can be fixed or mobile.
  • The flat belt conveyor material  can choose PVK, PVC, cold-resistant materials and other materials to meet the use of multiple working conditions.

Optional configuration

  • Frame structure
    • floor type
    • rope rack hanging type
  • Driving device
    • single motor drive
    • multi motor drive


Widely used in grain and oil, feed, fertilizer, mining, ports, power plants and many other industries.


  • Conveyor belt slipping
    • Cause: insufficient friction between drum and conveyor belt; The belt is too wet; Materials are adhered to the surface of the belt body; Overload operation of conveying equipment
    • Measures: adjust the tensioning device, replace or clean the foreign matters between the drum and the belt, and check whether the transported goods are overloaded
  • Conveyor belt deviation
    • Cause: the position of tensioning device and roller deviates
    • Measures: adjust the position of tensioning device and roller
  • Abnormal noise during conveyor operation
    • Cause: the reducer lacks lubricating oil, the drive shaft is not aligned or the bearing is damaged
    • Measures: adjust the chain tension and reposition the bearing seat

Advantages of our machining service

  • Competitive price and quality from our own factory
  • Approved by ISO9001, CE, SGS every year
  • Best service with 24 hour`s reply
  • Flexible payment with T/T,L/C , paypal, kunlun bank, etc
  • Smooth production ability
  • Quick delivery and standard exporting package
