Telescopic Roller Conveyor

The flexible roller conveyor is easy to connect and filter. The roller conveyor can be used to form a complex logistics transportation system and diversion and confluence system with multiple roller lines and otherconveying equipment or special machines to meet various process needs, which is widely used.

In the application of gravity roller conveyor, the use of open or steel shielding cover can avoid increasing the friction of bearing.


The roller conveyor is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be transported on pallets or turnover boxes.

NAR Automation engineering can provide customers with customized product solutions,Including equipment installation, debugging, training, etc. If you need equipmentmaintenance, we will provide you with quality after-sales service.


What are the classifications of roller conveyors?

  • Power roller conveyor: When you need to transport goods over a long distance, the power roller conveyor may be the most suitable product.
  • Gravity roller conveyor: Gravity roller conveyor mainly uses gravity to move goods,  does not need any power. It which not only reduces the demand of maintenance cost, but also reduces the operation cost and maintenance time of the conveyor.


Conveyor type Flexible Roller Conveyor

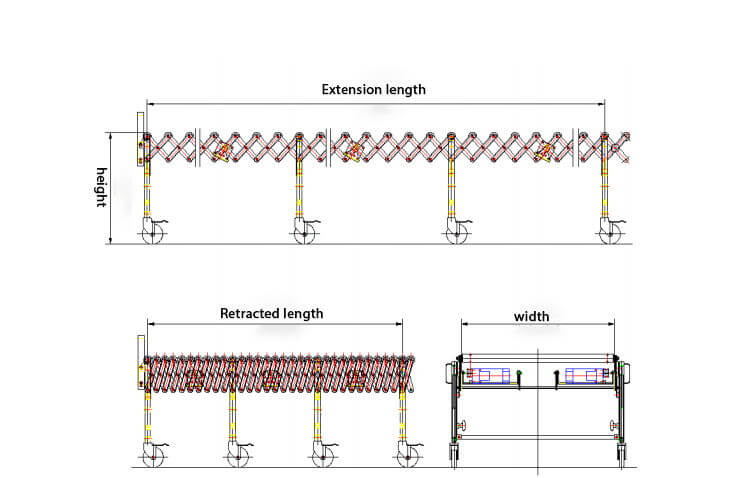

Model FRC-600 FRC-800
Closed 2000mm 2000mm
Expanded 5000mm 5000mm
Height 750mm-1100mm 750mm-1100mm
Roller width 610mm 760mm
Conveyor width 800m 950mm
Conveying direction Reversible
Capacity Max60KG/Meter
Speed 0-36M/minute(adjustable)
Motor 120W 120W
Weight 100KG 120KG

Standard configuration

  • conveying roller
  • frame
  • support
  • driving parts


  • It is easy to connect and transition between roller conveyors, and multiple roller lines and other conveying equipment or special machines can be used to form a complex logistics conveying system.
  • Structural form: In terms of driving form, the belt roller conveyor is divided into power, unpowered, electric roller, etc. According to the layout form, it is divided into horizontal conveying, inclined conveying and turning conveying.
  • Size specifications: The inner width of the roller conveyor is specified by the customer and can be made according to customer requirements.
  • Flexible Roller Conveyors are suitable for conveying items with a flat bottom, and are mainly composed of driving rollers, racks, brackets, and driving devices.
  • It has the characteristics of large conveying capacity, fast speed, brisk operation, and can realize multi-variety collinear shunt conveying.Fast roller replacement.
  • Rollers mounted on ball bearings for high loads with low drive power.

Optional configuration

  • Driving mode
    • power roller line
    • unpowered roller line
  • Layout
    • horizontal conveying roller line
    • inclined conveying roller line
    • turning roller line
  • The driving modes of turning roller conveying include
    • reduction motor drive
    • electric roller drive
  • Conveying  mode
    • single chain wheel,
    • double sprocket
    • plane friction transmission belt
    • synchronous belt
    • spool drive
  • Roller width/Expanded

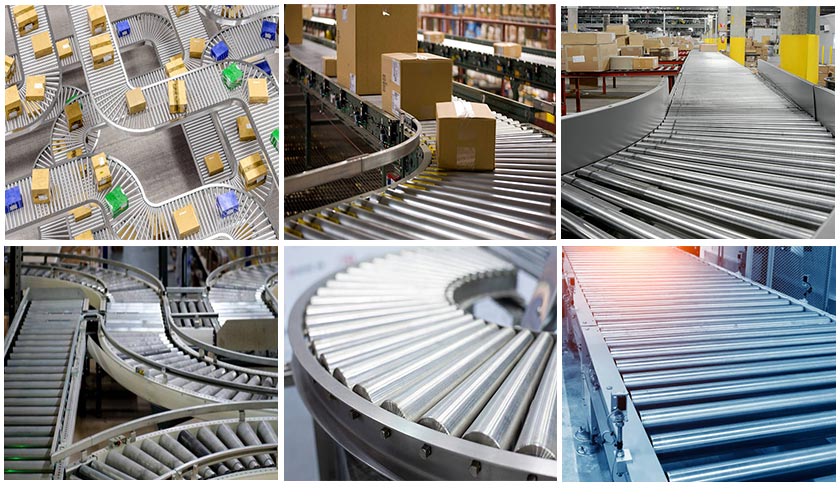

Widely used in grain and oil, feed, fertilizer, mining, ports, power plants and many other industries.


  • Conveyor belt slipping
    • Cause: insufficient friction between drum and conveyor belt; The belt is too wet; Materials are adhered to the surface of the belt body; Overload operation of conveying equipment
    • Measures: adjust the tensioning device, replace or clean the foreign matters between the drum and the belt, and check whether the transported goods are overloaded
  • Conveyor belt deviation
    • Cause: the position of tensioning device and roller deviates
    • Measures: adjust the position of tensioning device and roller
  • Abnormal noise during conveyor operation
    • Cause: the reducer lacks lubricating oil, the drive shaft is not aligned or the bearing is damaged
    • Measures: adjust the chain tension and reposition the bearing seat

How to choose the right roller conveyor?

  • Diameter of the rollers
  • Material size
  • The width of the conveyor

Advantages of our machining service

  • Competitive price and quality from our own factory
  • Approved by ISO9001, CE, SGS every year
  • Best service with 24 hour`s reply
  • Flexible payment with T/T,L/C , paypal, kunlun bank, etc
  • Smooth production ability
  • Quick delivery and standard exporting package
