Incline conveyor


The incline conveyor uses the continuous or intermittent movement of the conveyor belt to transport goods, with high efficiency and low noise. Different climbing equipment can be used for loading and climbing conveying of various materials.


The incline conveyor is suitable for the continuous transportation of goods with height difference between upper and lower floors, slope terrain, overpass and so on.

NAR Automation engineering can provide customers with customized product solutions,Including equipment installation, debugging, training, etc. If you need equipmentmaintenance, we will provide you with quality after-sales service.

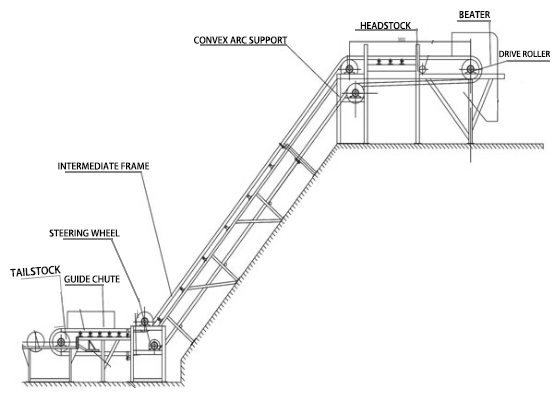

Incline Conveyor Standard Configuration

  • Driving device: power part of conveyor
  • Drive roller : power transmission
  • Change direction roller: change the moving direction of conveyor belt
  • Belt pressing wheel: used for the load on the surface of conveyor belt
  • Idler: used to support the conveyor belt and materials on the belt and make it run stably
  • Drag roller: used to support the lower branch of the conveyor belt on the convex arc section frame
  • Frame:carbon steel,powder coated


  • The incline conveyor can convey a wide range of materials, which can convey various bulk materials, as well as various cartons, packaging bags and other single goods.
  • The incline belt conveyor can choose non-slip PVK, PVC, cold-resistant materials and other materials to meet various working conditions and environment.
  • Incline conveyor can be used for continuous conveying when there is a difference in height.
  • The incline belt conveyor has a simple structure and is easy to consumes less energy and has a low cost of use.
  • The goods can be conveyed in both directions.
  • Incline conveyor can be combined with roller conveyors, belt conveyors, turning machines, hoists, assembly lines, etc. to form a complete automated conveying system.
  • Compared with other conveyors, the noise is lower, and it is suitable for the occasions where the working environment requires relatively quiet.
  • The length, width, height and tilt angle range of the belt conveyor can be selected according to customer needs.

Optional configuration

  • Idler
    • upper parallel idler
    • lower flat idler
  • Conveyor belt material
    • PVC belt
    • Rubber belt
    • Plastic belt
    • Canvas belt
    • Food grade belt
  • Roller
    • Stainless
    • Aluminum extrusion
  • Control
    • Photo cell controls
  • Fixed or adjustable guide rail
  • Slope belt conveyor ,belt with strip

  • slopebelt conveyor


Widely used in grain and oil, feed, fertilizer, mining, ports, power plants and many other industries.


  • incline conveyor belt slipping
    • Cause: insufficient friction between roller and conveyor belt; The belt is too wet; Materials are adhered to the surface of the belt body; Overload operation of conveying equipment
    • Measures: adjust the tensioning device, replace or clean the foreign matters between the drum and the belt, and check whether the transported goods are overloaded
  • Conveyor belt deviation
    • Cause: the position of tensioning device and roller deviates
    • Measures: adjust the position of tensioning device and roller
  • Abnormal noise during conveyor operation
    • Cause: the reducer lacks lubricating oil, the drive shaft is not aligned or the bearing is damaged
    • Measures: adjust the chain tension and reposition the bearing seat

Advantages of our machining service

  • Competitive price and quality from our own factory
  • Approved by ISO9001, CE, SGS every year
  • Best service with 24 hour`s reply
  • Flexible payment with T/T,L/C , paypal, kunlun bank, etc
  • Smooth production ability
  • Quick delivery and standard exporting package
